Shopfront Measuring, Fabrication Tolerances and First Fit
Allow 10-15mm total fitting tolerance between an aluminium shopfront frame and the structural opening — around 5-7mm per side — measured brick-to-brick at three points and worked from the smallest dimension. The frame itself should be fabricated to ±1mm on cut lengths with diagonals equal within 2mm, checked on a jig before dispatch. Most first-fit failures are survey errors, not fabrication errors; this guide covers both sides of that line, and who carries the cost when it goes wrong.
By Stephen Chappell, Managing Director, Kingsland Fabrications. Updated 3 July 2026. Trade-only — we supply and fabricate; we don't install.
What tolerance to allow between frame and structural opening
For a shopfront screen or entrance frame, allow 10-15mm total fitting tolerance against the smallest measured opening dimension — roughly 5-7mm per side. That gap is not slack in the fabrication; it is working room. It gives you space for packers at every fixing point, access to drive the fixings, a serviceable sealant joint around the perimeter, and movement room for the aluminium itself — a dark-coated frame on a sun-facing elevation expands measurably on a hot day. Above all, it absorbs the one certainty of site work: no masonry opening is truly square, and the frame has to be packed plumb and square inside a hole that is neither.
The tolerance is not spent evenly around the frame. The jambs and head are the forgiving edges — that is where the packers go and where a few millimetres either way is absorbed without consequence. The cill is the constrained edge: the threshold lands on the structural slab and has to relate to the finished floor level, and to any level-access requirement, so you cannot simply pack the bottom of the frame up without changing the threshold detail. Take most of the height tolerance at the head, and settle the threshold and floor-level detail at survey stage, not on fitting day.
The arithmetic, worked once
- Width measured brick-to-brick at the head: 4,020mm
- Width at mid-height: 4,015mm
- Width at cill level: 4,012mm — the smallest, so this is the working dimension
- Fitting deduction: 12mm
- Frame manufacturing width: 4,012 − 12 = 4,000mm — roughly 6mm per side for packers and fixings
Height follows the same rule: measure at both jambs and the centre, take the smallest, and deduct — remembering the cill constraint above. The deduction is stated on the drawing, so everyone can see which number the frame was made to.
These are the deductions we apply when fabricating JD47 aluminium shopfronts from a customer's survey — and the logic holds for any commercial aluminium screen, whatever system it is fabricated in.
How to measure a structural opening for a made-to-measure shopfront
Six stages, in order. Every one exists because skipping it has cost somebody a frame. The structural opening is the masonry — brick, block or steel — not anything fixed to it.

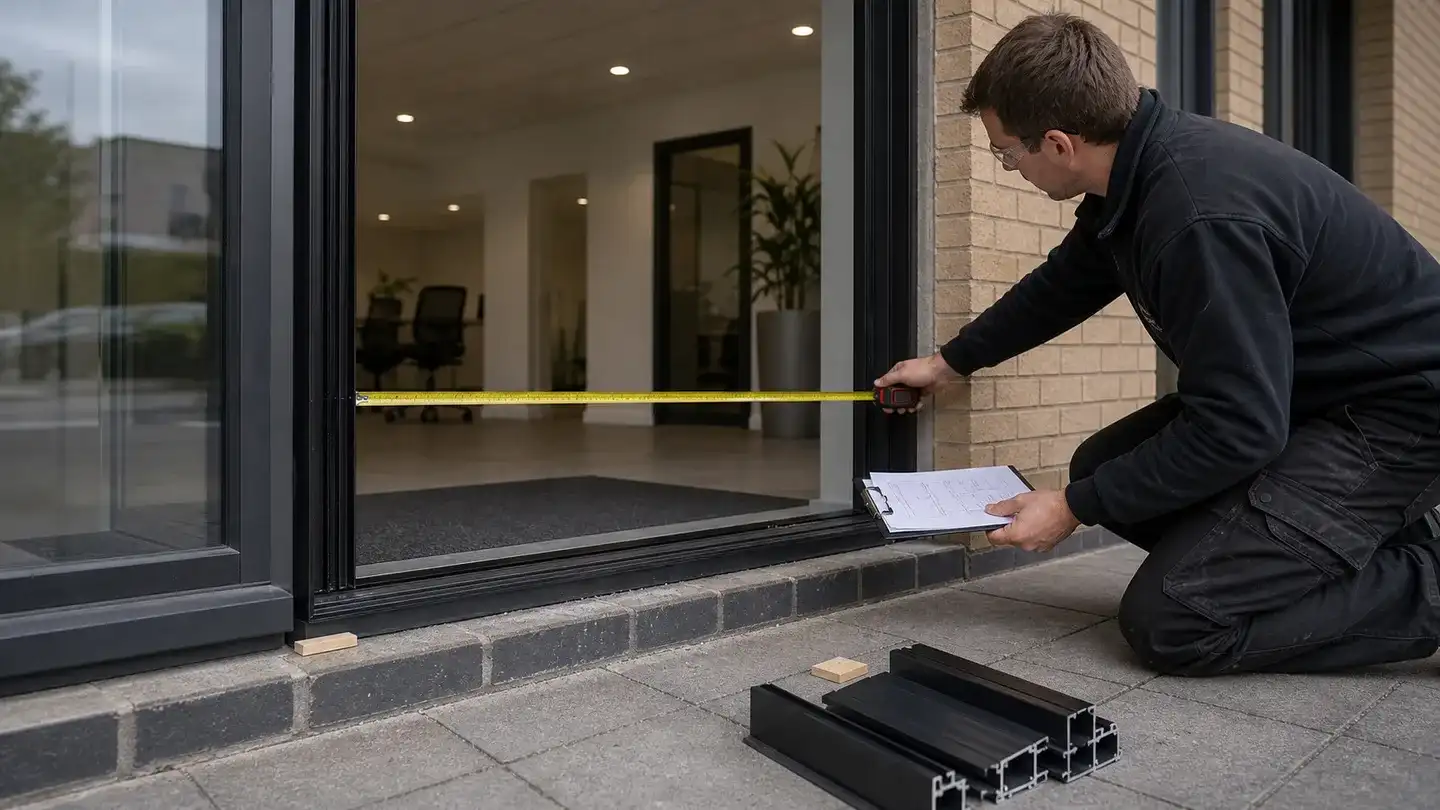

Measure the width brick-to-brick at three heights
Strip back to structure and measure the masonry-to-masonry width at the head, at mid-height and at cill level. Never measure plaster-to-plaster — plaster and linings are not structural, they come off or get made good around the new frame, and they routinely hide 20-40mm of opening.
Measure the height at three points
Take the height at both jambs and at the centre, from the structural cill or slab to the underside of the structural head — not to a suspended ceiling, canopy or fascia line.
Work from the smallest of each set
The frame has to pass the tightest point of the opening, so the smallest width and the smallest height are the working dimensions. Record all six measurements anyway — the spread tells the fabricator how irregular the opening is.
Check plumb, level and diagonals
Plumb both jambs, check the cill for level, and compare the two diagonals corner to corner. If the diagonals differ, the opening is out of square — record which corner is out and by how much, not just that it is.
Record the threshold condition and floor levels
Note the state of the structural cill, the finished floor level inside and out, and any level-access requirement. The threshold detail is set by these — not by the frame.
Photograph everything and note obstructions
Photograph the full opening and each corner, and note anything that will be in the way on the day: canopies, alarm boxes, signage, cabling and other services in the reveal.
Want this as a sheet the surveyor can take to site? Our replacement survey checklist is the printable version — the same stages laid out as a form to fill in against each opening reference.
What tolerances a fabricated frame should be made to
The survey side gets all the attention, but the frame has obligations too — and a buyer is entitled to know what they are. In our workshop the standard is this: cut lengths held to ±1mm off a calibrated double-mitre saw (the saws themselves repeat rather finer than that — the ±1mm is what we stand behind on the finished component), mitres and preps machined on CNC to the tolerance the cleat joint demands, and the assembled frame square with diagonals equal within 2mm. UK commercial aluminium frames are mechanically joined — cleated and crimped at the corners, not welded — so the squareness of the finished frame comes from the accuracy of the cuts and the joint, which is exactly why the cutting tolerance matters.
The critical word in all of that is verified. A tolerance that is never measured is a hope. Jig assembly is the verification step: every frame is assembled on the jig before dispatch, the diagonals are taped corner to corner, the hardware is operated, and the beads are fitted and checked. Anything wrong is found in the workshop, where it costs minutes on a bench — not on site, where the same problem costs a wasted crew, a return visit and an awkward phone call. (If any of the terms here are unfamiliar, the fabrication and supply section of our glossary covers cleats, jigs and the rest of the workshop vocabulary.)
So the question worth asking any fabricator before you order — us included — is simply: "What tolerances do you fabricate to, and how do you verify them before dispatch?" The numbers above are our answer, in public. A fabricator who cannot answer it is asking you to absorb their risk on site.
"The saw can be calibrated all you like — the jig is where a frame proves it's square. Either the diagonals match or they don't, and we'd much rather find out here than have you find out on site."
— Stephen Chappell, Managing Director
Why don't my aluminium frames fit first time? The seven real reasons
When a frame fails first fit, the cause is nearly always one of these seven. Each has a tell — the symptom on site that points at it.
The old frame was measured, not the opening
The outgoing frame’s outer dimensions already include its own fitting gap and whatever packers went in when it was fitted. Order a new frame to those sizes and you inherit an unknown deduction.
The tell: The new frame is close but binds on one edge — and nobody on site can say what the actual brick-to-brick dimension was.
Plaster was measured, not brickwork
Plaster, linings and trims are not structural, and they come off. Measuring between finished faces instead of masonry routinely loses 20-40mm of opening.
The tell: The frame won’t enter until the reveal is hacked back — and then it fits.
The opening is out of square, but was surveyed with single measurements
One width, one height, no diagonals. A parallelogram opening measures the same as a square one until you compare the diagonals.
The tell: The frame goes in at one end and pinches at the other, and the survey sheet has exactly two numbers on it.
No fitting deduction was applied
The frame was ordered at the opening size itself. The survey was accurate, the frame was fabricated accurately to it, and it still fails — because there is no room left for packers or fixings.
The tell: The frame is the exact size of the opening. It has to be forced, trimmed or returned.
The largest measurement was used instead of the smallest
Averaging the three widths, or taking the most generous one, guarantees the frame is bigger than the tightest point of the opening.
The tell: It fits along part of the opening and jams where the masonry closes in; a re-measure finds the smaller dimension the survey discarded.
A unit or transcription error
Millimetres transcribed as centimetres, transposed digits — 2,140 recorded as 2,410 — or sizes written against the wrong opening reference. It can happen on the survey sheet or at order entry, which is exactly what drawing sign-off exists to catch.
The tell: The error is a suspiciously tidy amount — a factor of ten or a digit swap — rather than a few millimetres.
Racking in transit or damage on site
A frame that left the workshop square can be racked out of square by poor loading or restraint, or damaged in storage on site after delivery.
The tell: The order was jig-checked square at dispatch, but a diagonal is out on arrival — usually with visible packaging damage to match.
Notice the pattern: five of the seven are survey-side. The sixth lives wherever the transcription happened — the survey sheet or the fabricator's order entry, which is precisely what drawing sign-off exists to catch. The seventh is logistics. The genuinely fabrication-side failure — a frame cut or assembled outside the tolerances published above — is real, but with calibrated machinery and a jig check on every frame it is the rarest of the lot. That split is why the responsibility question has a clean answer.
Who is responsible when a supply-only frame doesn't fit?
Supply-only splits the risk cleanly, and it is worth saying in plain terms. The buyer's sizes are the buyer's risk. The fabricator's tolerances are the fabricator's risk. If the frame is outside the fabricator's published tolerances — a cut length out, diagonals beyond the stated limit — the fabricator remakes it at their own cost. If the frame was made accurately to the sizes supplied and those sizes were wrong, the remake is chargeable. That is not small print to catch you out; it is the only arrangement under which supply-only fabrication can work at trade prices, because the fabricator never sees the opening.
Which is exactly why the process before cutting matters more than the terms after it. A good fabricator protects both sides of that line before any metal is cut:
- Queries odd sizes and impossible geometry. A width set whose diagonals cannot close, a height that looks like a transposed digit, a dimension that is suspiciously round — these should come back as a question, not go to the saw.
- Issues CAD drawings for sign-off. We issue CAD drawings with every quote. The drawing states the manufacturing sizes, so the last check happens on paper — where a mistake costs a revision — rather than at the opening, where it costs a remake.
- Confirms deductions in writing. Whether the sizes you sent are opening sizes or manufacturing sizes should never be an assumption. It is confirmed before cutting, so nobody discovers a different understanding at the kerbside.
Read the sign-off drawing against your own survey notes before you approve it. It is the one moment in the process where a survey error and a transcription error are both still free to fix.
How we get to 99% first fit
We quote a 99% first-time fit rate across the site, and this page is where we substantiate it: 99% of Kingsland aluminium fits first time, measured across all trade orders since 2022. It is not a slogan about craftsmanship — it is the output of a process built around every failure mode listed above.
The CAD sign-off loop catches the survey-side errors: odd sizes get queried, deductions are stated on the drawing, and the buyer confirms the manufacturing sizes before anything is cut. Calibrated double-mitre saws and Elumatec CNC machining hold the cutting tolerance. Every frame is then assembled on the jig, taped across the diagonals, hardware-operated and bead-checked before it is wrapped. Finally the order is braced, wrapped and palletised, labelled by opening reference, so what was verified square in the workshop arrives square on site — delivered throughout mainland Britain from our Warrington workshop, with quotes returned within 24 hours and a standard lead time of 21 working days.
And the remaining 1%, honestly? It is mostly the site changing between survey and delivery — a reveal rebuilt, a floor level raised by another trade, an opening altered after the sizes were confirmed. No fabrication process can prevent that, but the sign-off drawing shrinks even this category: because it records exactly what was assumed about the opening, it turns "the frame is wrong" into "the site has changed", which is a much quicker conversation to resolve.
Frequently asked questions
How much smaller than the opening should a shopfront frame be?
10-15mm smaller overall than the smallest measured opening dimension — roughly 5-7mm per side. That gap is for packers, fixings and the reality that masonry openings are never perfectly square; the frame is packed plumb and square within it.
Should I measure brick-to-brick or plaster-to-plaster?
Brick-to-brick, always. Plaster and linings are not structural and are usually removed or made good around the new frame; measuring to plaster routinely loses 20-40mm and is one of the most common causes of frames that won’t go in.
What if the opening is out of square?
Survey it, don’t average it: give widths at head, mid and cill, heights at both jambs, and the diagonals, and say which corner is out. The frame is fabricated square to the smallest dimensions and the difference is taken up in packing — a square frame in an out-of-square opening is normal; the reverse is a remake.
Who pays if a supply-only frame doesn’t fit?
Whoever’s data failed. If the frame is outside the fabricator’s published tolerances, the fabricator remakes it at their cost. If the survey sizes were wrong, the remake is chargeable — which is why a fabricator that queries odd sizes and issues CAD drawings for sign-off before cutting is protecting you, not slowing you down.
Do fabricated frames get checked before dispatch?
They should be — ask your fabricator how. At Kingsland every order is assembled on the jig, diagonal-checked, hardware-tested and labelled per opening before wrapping; measured across all trade orders since 2022, 99% fit first time.
