Curtain Walling

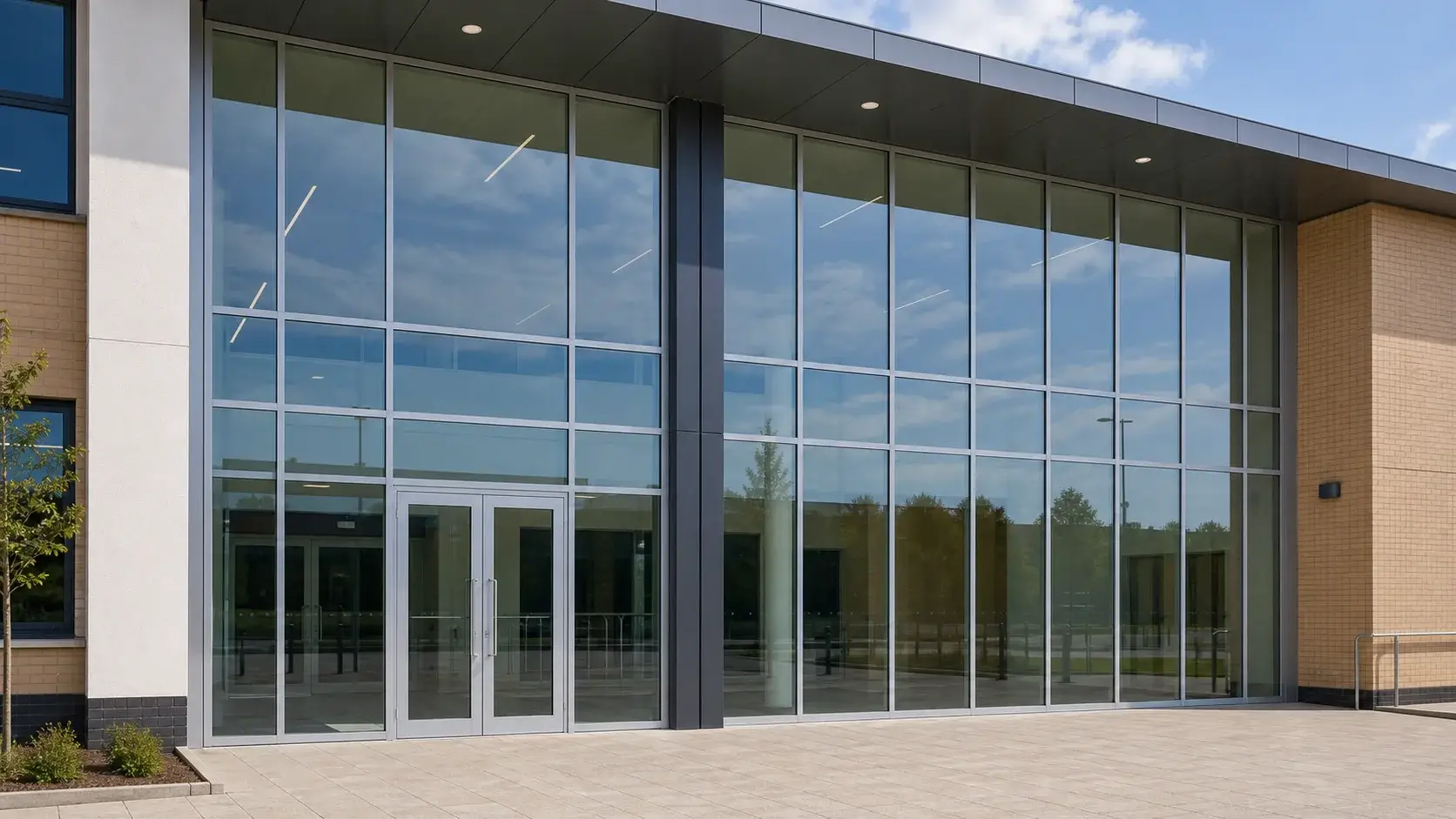

Aluminium curtain walling system with 50mm slim sightlines. Capped or structural glazing, pressure-equalised drainage, and full height capability for commercial facades and office buildings.
Technical Specifications
| Sightline | 50mm |
| Max Height | Up to 13 metres |
| Air Permeability | Tested to 600 Pa |
| Water Tightness | Tested to 600 Pa |
| Wind Resistance | Tested to 2400 Pa |
| Glazing | Up to 32mm units |
Trade pricing available on request — quotes returned within 24 hours (Mon-Fri)
What's Included (at No Extra Cost)
Other fabricators charge extra — or simply leave it out. Every Kingsland order includes:
About the JCW System
The JCW is an aluminium and PVCu composite curtain walling system capable of spanning up to 13 metres in height. Three mullion and transom section options provide flexibility for different structural and aesthetic requirements, while 50mm sightlines keep the visible frame profile slim across large facades. The system accepts glazing up to 32mm and is compatible with acoustic glass for noise-sensitive applications. Weather performance is tested to BS 6375 Part One: air permeability to 600 Pa, water tightness to 600 Pa, and wind load resistance to 2400 Pa — equivalent to wind speeds up to 150 mph. A clip-in plate ladder installation system and factory-manufactured components ensure consistent quality and efficient fitting on site. The JCW integrates directly with TD68 commercial entrance doors, JD47 shopfront doors, TW70 commercial windows, and AVS louvre systems — so a complete building envelope can be fabricated from a single compatible system range. We supply JCW curtain walling with pressure-equalised transom drainage, capped or structural glazing options, and integrated opening vents where ventilation is required.
Features
- 50mm slim sightlines
- Capped or structural glazing
- Pressure-equalised drainage
- Thermal break technology
- Integrated opening vents
- Door integration
- Louvre integration
- Full height capability
Benefits
- Maximum visual impact
- Superior weather performance
- Flexible design options
- Long service life
- Complete system warranty
Applications
- Commercial facades
- Office buildings
- Retail developments
- Educational buildings
- Public buildings
Works Perfectly With
Complete your project with these compatible aluminium systems from our trade fabrication range
How It Works
No runaround, no chasing. From enquiry to installation-ready products in four simple steps.
Send Us Your Specs
Fill out our quick form, or send us measurements and photos — drawings aren't essential.
We Confirm the Details
A quick call or email to finalise specifications.
Quote Within 24 Hours
Receive competitive trade pricing, no obligation. Mon-Fri.
Jig-Tested & Delivered
Test-fitted, glazed, and beaded in our workshop — delivered ready to fit.
Frequently Asked Questions — Curtain Walling
What is the maximum height for JCW curtain walling?
What are the weather performance ratings for the JCW?
Can doors and windows be integrated into curtain walling?
Is acoustic glass compatible with the JCW curtain walling?
Do you supply curtain walling as a trade fabricator?
