TD68

Commercial Entrance Doors

Heavy-duty commercial aluminium entrance doors built for demanding, high-traffic environments. 68mm profiles with manual or automatic operation, panic hardware, and access control integration.

Current Lead Time: ~21 Days
Jig-Tested Before Dispatch
Precision Fabricated in UK
Trade Only Pricing
Get Quote 01925 500 295

Technical Specifications

Frame Depth68mm
U-ValueFrom 1.7 W/m²K
Max Tested1300mm × 3000mm
Pivot Capacity250kg
Glazing24mm - 44mm
SecuritySTS202 BR2 / PAS 24 / SBD
OperationManual / Automatic

Trade pricing available on request — quotes returned within 24 hours (Mon-Fri)

What's Included (at No Extra Cost)

Other fabricators charge extra — or simply leave it out. Every Kingsland order includes:

Beads, gaskets & fixings included
Glazed & beaded in our workshop
Labelled by opening reference
Wrapped for transit protection
Jig-tested to your specification
CAD drawings before fabrication

About the TD68 System

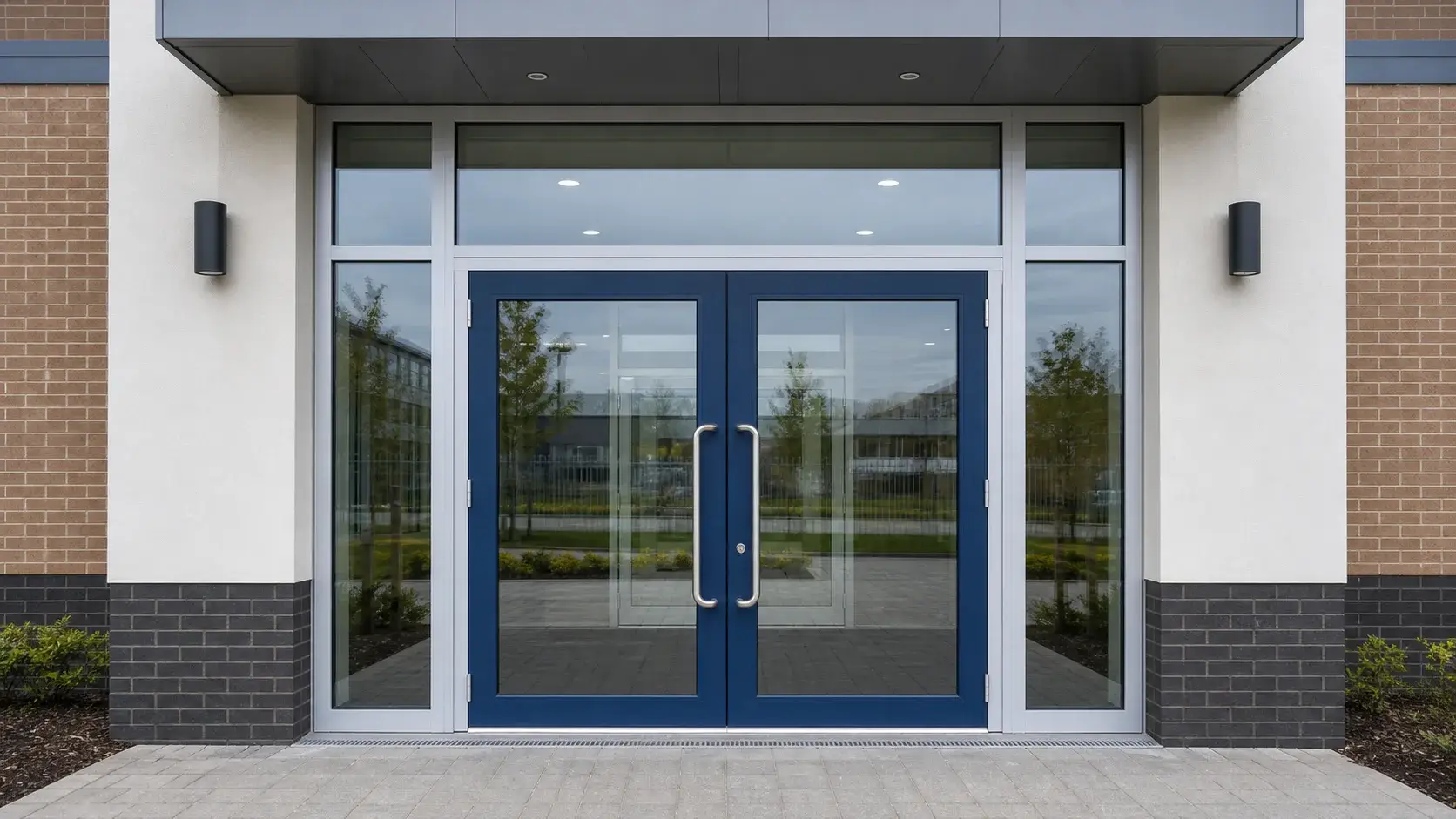

The TD68 is a thermally broken commercial door system built for high-traffic environments where security, durability, and accessibility are non-negotiable. The 68mm profile depth accommodates glazing from 24mm to 44mm, and the bottom pivot is rated to 250kg — making it suitable for heavy, large-format door leaves up to 1300mm wide and 3000mm tall (tested dimensions). Security credentials include STS202 BR2, PAS 24 testing, and Secured by Design compliance when specified with approved hardware. Side lights and fan lights are also PAS 24 tested. The TD68 supports manual operation with floor springs or pivot sets, and automatic operation with concealed or surface-mounted operators. Hardware options include motorised multipoint locks, electromagnetic locking, three-point locks with TOTAL/LIGHT/FREE access modes, anti-snap cylinders, and concealed panic bar designs. A curved finger guard is standard for safety in public-facing installations. We fabricate TD68 doors with Exova BM TradaQ certification available on request, and finish in single or dual-colour polyester powder coat through a Qualicoat-approved supplier.

Jig-tested to your spec
Complete kit included
99% fit first time
Arrives glazed & beaded

Features

  • 68mm heavy-duty profiles
  • High traffic rated construction
  • Manual or automatic operation
  • Panic hardware compatible
  • Access control integration
  • Anti-finger trap design
  • Full height pivot or floor spring
  • Concealed closers available

Benefits

  • Built for demanding commercial use
  • Compliant with accessibility regulations
  • Flexible automation options
  • Durable for high footfall areas
  • Easy integration with building systems

Applications

  • Office buildings
  • Retail premises
  • Public buildings
  • Educational facilities
  • Healthcare settings

Works Perfectly With

Complete your project with these compatible aluminium systems from our trade fabrication range

Curtain Walling - compatible aluminium system

Curtain Walling

Shopfront Doors - compatible aluminium system

Shopfront Doors

Commercial Windows - compatible aluminium system

Commercial Windows

Kingsland Fabrications production line and assembly process

How It Works

No runaround, no chasing. From enquiry to installation-ready products in four simple steps.

1

Send Us Your Specs

Fill out our quick form, or send us measurements and photos — drawings aren't essential.

2

We Confirm the Details

A quick call or email to finalise specifications.

3

Quote Within 24 Hours

Receive competitive trade pricing, no obligation. Mon-Fri.

4

Jig-Tested & Delivered

Test-fitted, glazed, and beaded in our workshop — delivered ready to fit.

Frequently Asked Questions — Commercial Doors

What security certifications does the TD68 commercial door have?
The TD68 is tested to PAS 24 and BS:EN 6375 (Parts I, II, and III), with STS202 BR2 security accreditation. It is SBD (Secured by Design) compliant when specified with approved hardware. Side lights and fan lights are also PAS 24 tested. Exova BM TradaQ product marking is available on request.
What is the maximum size for a commercial entrance door?
The TD68 has been tested to 1300mm wide by 3000mm tall. The bottom pivot is rated to 250kg, supporting heavy, large-format door leaves for commercial entrances.
Can commercial entrance doors be automated?
Yes. The TD68 supports both manual and automatic operation. Automatic options include concealed or surface-mounted operators. Hardware includes motorised multipoint locks and electromagnetic locking with TOTAL, LIGHT, and FREE access modes for different security requirements throughout the day.
What panic hardware is available for commercial doors?
The TD68 includes a concealed panic bar design option for clean aesthetics, plus compatibility with standard surface-mounted panic hardware. Combined with the curved finger guard and anti-finger trap profiles, it meets safety requirements for public buildings, schools, and healthcare settings.
What is the thermal performance of the TD68?
The TD68 achieves U-values as low as 1.7 W/m²K with a thermally broken low threshold. The 68mm thermally broken profile accepts glazing from 24mm to 44mm, so thermal performance can be optimised by specifying appropriate sealed units.
