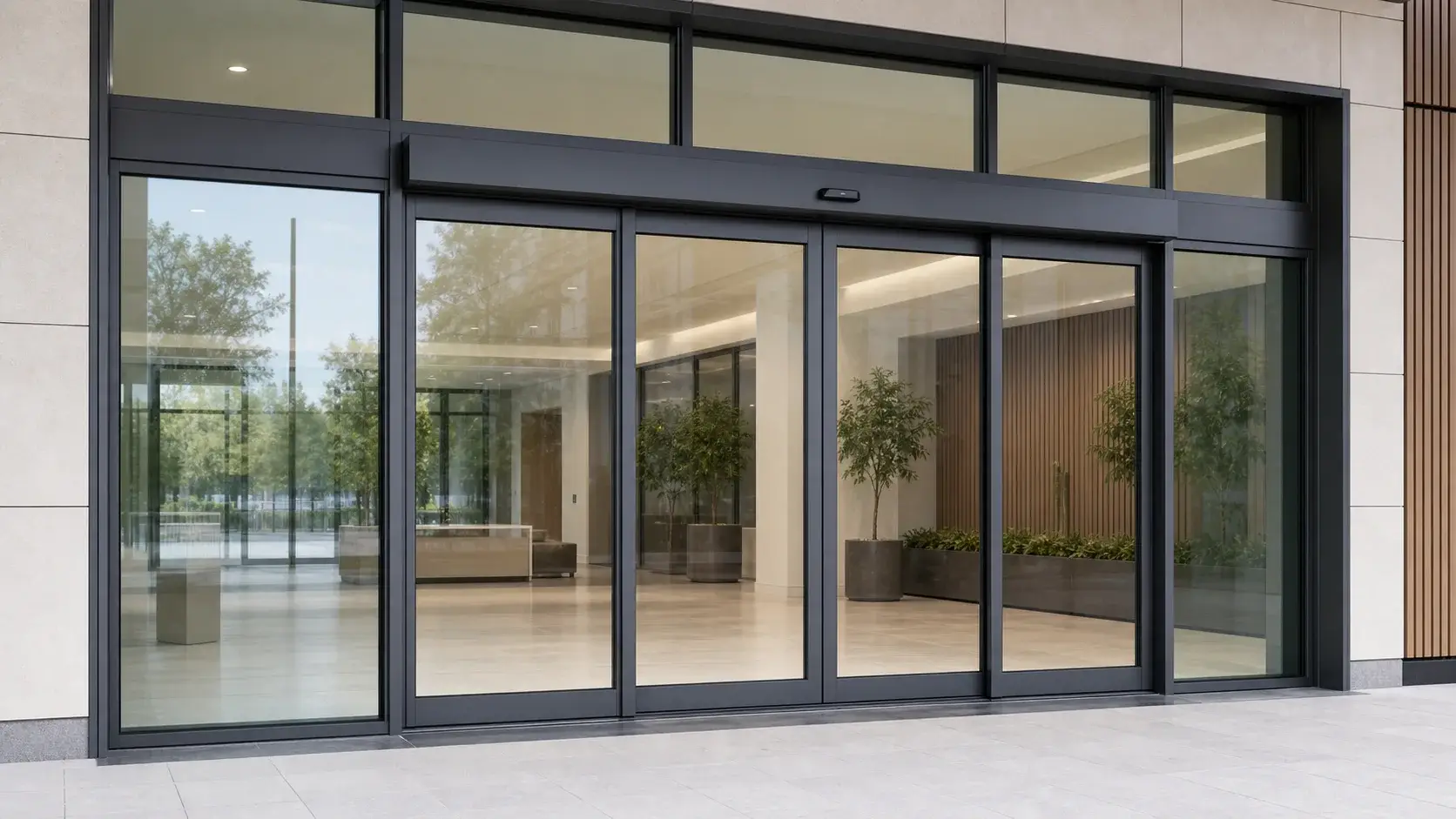

Automatic Sliding Doors
Aluminium frames for automatic sliding doors in bi-parting or single-slide configurations. Frames fabricated to operator specifications with breakout capability for emergency escape.
Technical Specifications
| Frame System | TD68 / JD47 |
| Max Opening Width | Up to 3000mm |
| Max Panel Height | 2700mm |
| Configuration | Bi-parting / Single slide |
| Glazing | 24mm - 44mm |
| Breakout | Available |
| Thermal Break | Optional |
Trade pricing available on request — quotes returned within 24 hours (Mon-Fri)
What's Included (at No Extra Cost)
Other fabricators charge extra — or simply leave it out. Every Kingsland order includes:
About the TD68 / JD47 System
We fabricate aluminium frames for automatic sliding doors in bi-parting or single-slide configurations using TD68 or JD47 profiles. This is a frame-only supply — we manufacture the aluminium frame set to your operator specifications, and your installer fits the automation hardware on site. Frames are available with concealed track housing, integrated transoms for signage, and breakout capability for emergency escape compliance. Thermally broken TD68 profiles are available where thermal performance is required, or non-thermal JD47 profiles for standard commercial applications. Maximum opening widths up to 3000mm with panel heights up to 2700mm. PAS 24 security options and glazing from 24mm to 44mm are available. Compatible with all major automatic operator brands — we fabricate to the operator manufacturer's specified frame dimensions.
Features
- Bi-parting or single slide configurations
- Breakout capability for emergency escape
- Frame-only supply for operator integration
- Concealed track housing
- Thermally broken profiles available
- Integrated transom for signage
- Full RAL colour range
- PAS 24 security options
Benefits
- Frames fabricated to operator specifications
- Compatible with all major operator brands
- Your installer fits the automation
- Quick turnaround on frame supply
- Technical support for integration
Applications
- Retail store entrances
- Supermarkets
- Shopping centres
- Public buildings
- Healthcare facilities
- Office lobbies
Works Perfectly With
Complete your project with these compatible aluminium systems from our trade fabrication range
How It Works
No runaround, no chasing. From enquiry to installation-ready products in four simple steps.
Send Us Your Specs
Fill out our quick form, or send us measurements and photos — drawings aren't essential.
We Confirm the Details
A quick call or email to finalise specifications.
Quote Within 24 Hours
Receive competitive trade pricing, no obligation. Mon-Fri.
Jig-Tested & Delivered
Test-fitted, glazed, and beaded in our workshop — delivered ready to fit.
Frequently Asked Questions — Sliding Doors
Do you supply the automatic operator with the door frames?
What frame systems are used for automatic sliding doors?
Do automatic sliding door frames include breakout capability?
Interested in Sliding Doors?
Every site delay costs you money. Send us your specs and we'll quote within 24 hours — jig-tested, complete kits, delivered ready to fit.
