Aluminium Shopfront Systems fabricated by Kingsland Fabrications
Back to Products
JD47 + JCW

Aluminium Shopfront Systems

Complete aluminium shopfront systems fabricated for shopfitters, fitout contractors and retail main contractors. We supply the full shop frontage — frames, glazed display zones, signage zones, and integrated entrance doors — as a coordinated kit, not just the door. The aluminium shopfronts UK shopfitters specify when they need a single supplier for the whole frontage.

Lead Time: 21 Working Days
Factory-Glazed & Gasketed Leaves
Jig-Tested Before Dispatch
Precision Fabricated in UK
Trade Only Pricing
Get Quote 01925 500 295 WhatsApp

Technical Specifications

Door Frame Depth47mm (JD47)
Curtain Wall Sightline50mm
Display Zone Glazing6mm – 28mm
Max System HeightUp to 13m (with JCW curtain walling)
Threshold Options100mm / 150mm / Drained
Signage ZoneCoordinated to scheme — bespoke per opening
OperationManual or automatic-ready

Trade pricing available on request — quotes returned within 24 hours (Mon-Fri)

What's Included (at No Extra Cost)

Other fabricators charge extra — or simply leave it out. Every Kingsland order includes:

Beads, gaskets & fixings included
Glazed & beaded in our workshop
Labelled by opening reference
Wrapped for transit protection
Jig-tested to your specification
CAD drawings before fabrication

About the JD47 + JCW System

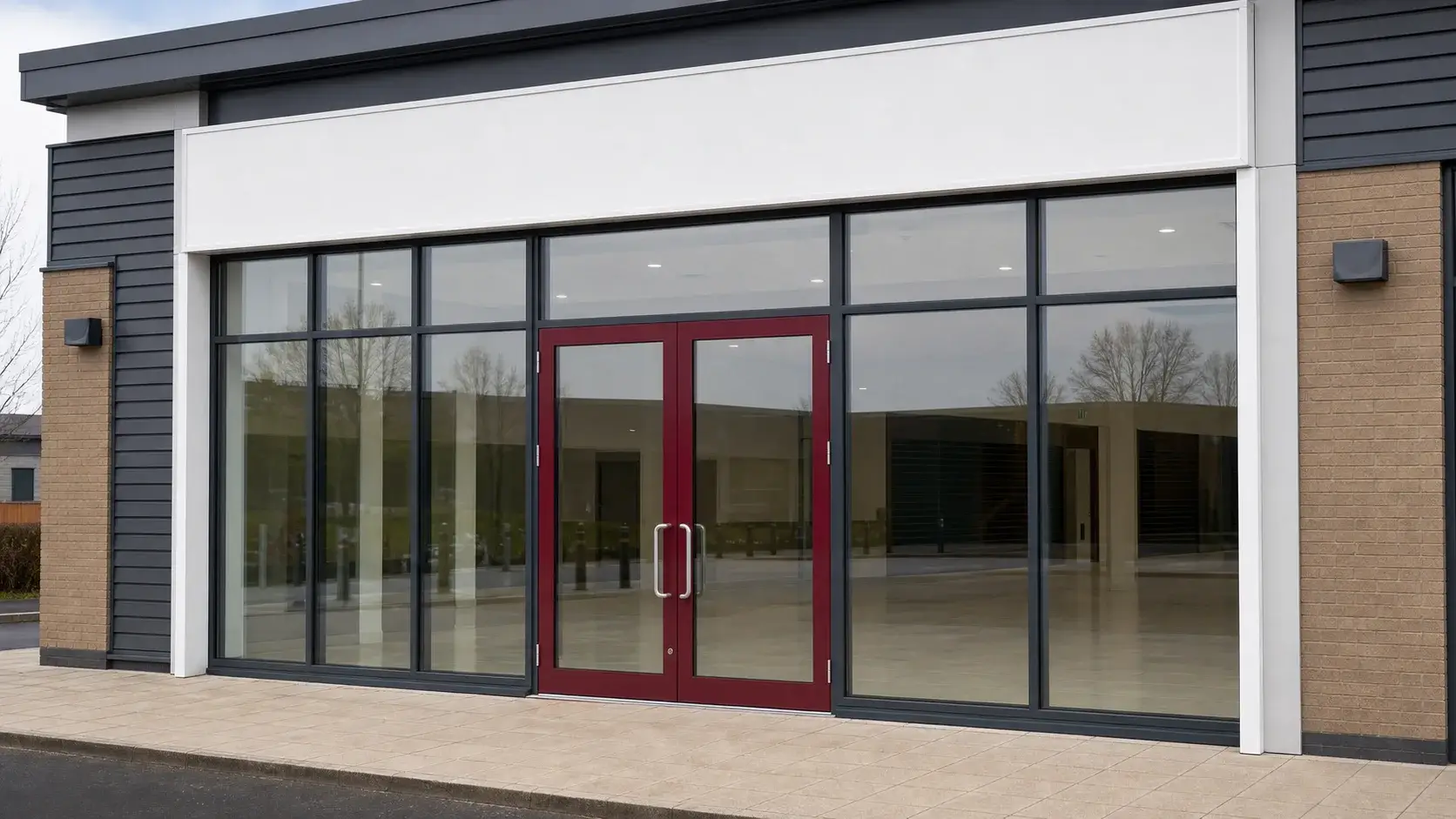

An aluminium shopfront is more than its door — it is the coordinated frontage that frames the retail unit. We fabricate complete aluminium shopfronts on the JD47 (door) + JCW (curtain wall and display zone) Jack Aluminium platform so a single supplier covers the entire frontage as a coordinated set. Shopfitters get framing, glazed display zones, signage rail height, and the entrance leaf engineered to a single scheme — eliminating the cross-supplier interface issues that cause site delays. Display zones glaze to 28mm sealed units, signage zones are scheme-coordinated to the architect's elevation, and the JD47 entrance frame integrates with curtain walling profiles for visual continuity. The JD47 door element accepts 6mm to 28mm glazing, with floor-spring or pivot operation and curved finger guards as standard. We deliver every shopfront kit jig-tested, labelled by opening reference, glazed and beaded — ready for the shopfitter to install. We also supply reactive shopfront replacement work, fabricating to a survey when an existing shopfront has failed and needs replacing as part of a retail maintenance call.

Jig-tested to your spec
Complete kit included
99% fit first time
Arrives glazed & beaded

Features

  • Full shopfront system, not just doors
  • JD47 slimline door profiles + JCW curtain wall integration
  • Signage zone height-coordinated to scheme
  • Single, double or multi-leaf entrance configurations
  • Glazed display zones up to 13m system height
  • Floor spring or pivot entrance options
  • Full RAL colour range — single or dual finish
  • Compatible with security shutter systems

Benefits

  • One supplier for the entire shopfront — frames, doors, signage zone, glazing
  • Coordinated profiles eliminate site fitting issues at frame interfaces
  • Complete kit delivered jig-tested, labelled by opening reference
  • Trade pricing structured for shopfitter margins
  • Reactive replacement supply for failed shopfronts on existing schemes

Applications

  • High street retail shopfronts
  • Shopping centre unit fit-outs
  • Hospitality and bar/restaurant frontages
  • Bank and showroom commercial frontages
  • Pharmacy and convenience retail
  • Reactive shopfront replacement for shopfitters

Works Perfectly With

Complete your project with these compatible aluminium systems from our trade fabrication range

Shopfront Doors - compatible aluminium system

Shopfront Doors

Curtain Walling - compatible aluminium system

Curtain Walling

Commercial Entrance Doors - compatible aluminium system

Commercial Entrance Doors

Kingsland Fabrications production line and assembly process

How It Works

No runaround, no chasing. From enquiry to installation-ready products in four simple steps.

1

Send Us Your Specs

Fill out our quick form, or send us measurements and photos — drawings aren't essential.

2

We Confirm the Details

A quick call or email to finalise specifications.

3

Quote Within 24 Hours

Receive competitive trade pricing, no obligation. Mon-Fri.

4

Jig-Tested & Delivered

Test-fitted, glazed, and beaded in our workshop — delivered ready to fit.

Frequently Asked Questions — Aluminium Shopfronts

Are these aluminium shopfront fabrications supplied as complete systems?
Yes. We supply the full shopfront as a coordinated kit — entrance door (JD47), display-zone glazing, signage zone, and any curtain walling tie-ins (JCW) — all fabricated to a single scheme. Shopfitters and fitout contractors get one supplier for the whole frontage, not separate orders for door and glazing.
What size aluminium shop fronts can you fabricate?
When integrated with our JCW curtain walling system, the shopfront can extend up to 13m in height and is wind-load tested to 2400 Pa. Most retail shopfronts are well within these limits. We fabricate to your survey or architect's elevation.
Can you fabricate aluminium shopfronts for reactive maintenance work?
Yes. Reactive shopfront replacement is one of our core trade segments. If an existing shopfront has failed — impact damage, weather damage, or end-of-life replacement — send us the survey and we fabricate the replacement frontage as a complete kit, typically within our 21-day standard lead time, with rush turnarounds available where the unit is critical.
Do aluminium shopfronts include the signage zone?
Yes. Signage zone height and detail is coordinated to your scheme drawings, including the rail height, edge profile, and any required service zones for illuminated lettering. We fabricate the signage zone as part of the shopfront kit so the entire frontage arrives as a single coordinated assembly.
Do you supply automatic shopfront entrance doors?
We supply the aluminium frame and door leaf jig-prepared for automatic operator fitting. The shopfitter or specialist installer fits the operator on site. This is the standard arrangement across UK retail because operators are typically supplied by the door automation specialist.
Can shopfronts be fabricated in a coloured finish to match brand standards?
Yes. Single-colour and dual-colour polyester powder coat finishes are available across the full RAL range, applied through a Qualicoat-approved supplier. Specify the RAL number(s) on your quote request and we factor the finish into the lead time.

Interested in Aluminium Shopfronts?

Every site delay costs you money. Send us your specs and we'll quote within 24 hours — jig-tested, complete kits, delivered ready to fit.
